When I play guitar, I like to have absolute silence when I stop playing. It sounds simple, but to achieve this, the guitar controls need to be perfectly isolated. That's what I'm going to show you in this video.

Why is insulation crucial?

The basic principle for achieving this absolute silence lies in the isolation of the guitar's components, especially the pickups and electronics. Indeed, pickups are sensitive to electromagnetic interference that can generate parasitic noise. This interference comes from everywhere: wireless devices, radios, or even electromagnetic waves present in the air. If this interference is not controlled, it can turn into unwanted noise.

Imagine for a moment: if you can hear a radio station in your guitar, it's a clear sign that the isolation is not optimal. This noise can be annoying, but there are simple solutions to fix it.

The Faraday Cage: The Solution

To avoid these problems, a so-called metal enclosure is used around the sensitive components of the guitar, especially the pickups. This metal enclosure acts like a Faraday cage: it blocks electromagnetic waves and prevents interference from disrupting the guitar's electronics. By connecting this cage to ground, this interference is allowed to be neutralized and sent back to earth.

The role of the human body

Another aspect to consider is that our own body is also exposed to electromagnetic fields. This can interfere with the guitar signal. That is why it is essential that the strings and electronics are grounded, to neutralize this phenomenon. When you touch the guitar, the signal must be pure and free of interference.

Materials used for insulation

Traditionally, either conductive paint or copper tape is used to create this Faraday cage. These materials are effective, but I discovered an interesting alternative: self-adhesive aluminum foil tape, available at any hardware store. This material is not only easy to apply, but it also has interesting characteristics in terms of conductivity.

Aluminum vs Copper

Aluminum conducts electricity less well than copper, but for an application like a Faraday cage for a guitar, it is still more than adequate. The circuit is high impedance, which means that even moderate conductivity is more than enough to neutralize interference.

It is also important to note that the adhesive used in copper tape is conductive, allowing the strips to simply be overlapped to ensure conductivity. In contrast, the adhesive in aluminum tape is non-conductive, requiring more precision when applying it to ensure a good connection.

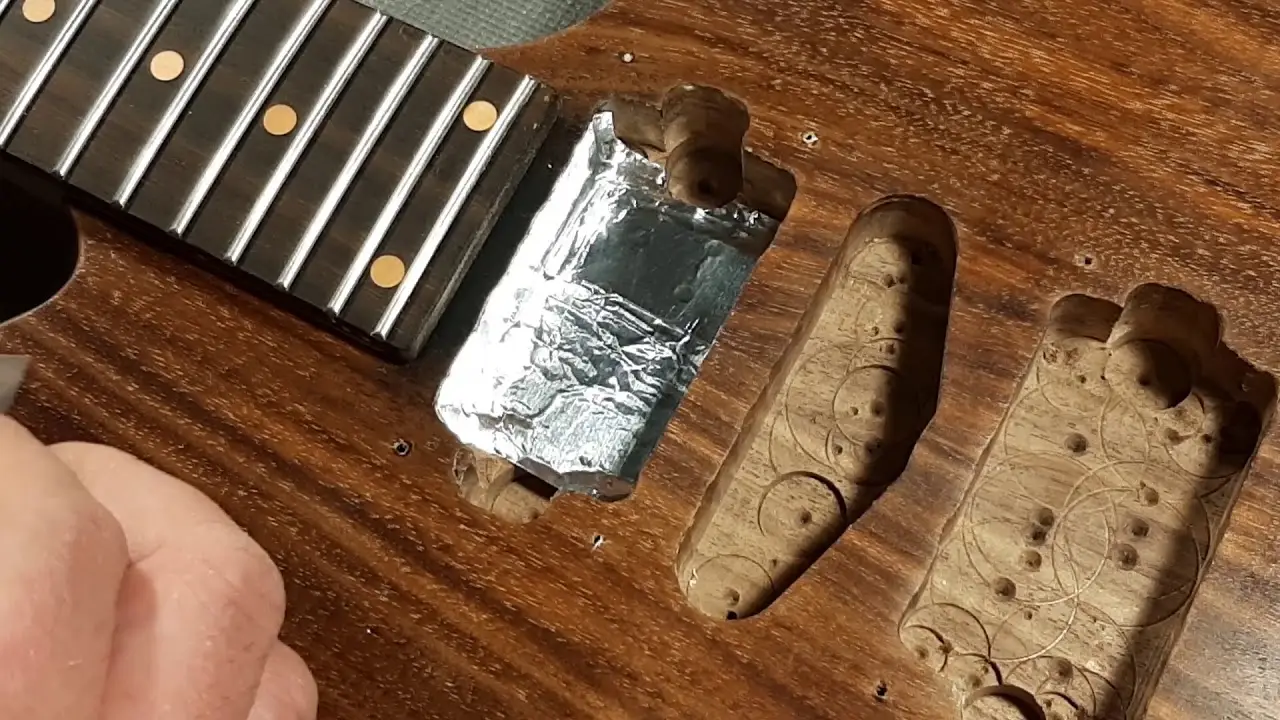

Application of aluminum tape

When I apply the aluminum foil tape, I make sure to create metal-to-metal contact by slightly folding the edges of the strips. This ensures good conductivity, even though the adhesive is not conductive. It's a small detail, but it's essential to ensure that the assembly works properly.

Welding on aluminum

Another important difference between copper and aluminum is that aluminum quickly develops a thin layer of oxidation that prevents solder from bonding well. To overcome this, the aluminum surface must first be cleaned before soldering. Once the oxidation layer is removed, the solder holds well and creates a solid connection for grounding.

The welding challenge

Aluminum is more difficult to solder than copper, but it is not an impossible task. You just need to prepare the surface well and use a soldering iron powerful enough to allow the solder to melt. When applying, I make sure that the solder is centered on the tape to ensure a clean and reliable connection.

Ground connection

Once all the cavities are covered by the tape, it is essential to connect all the sections together and connect them to the ground of the guitar. This ensures that all electromagnetic interference is neutralized. To do this, I use a copper cable that I connect to the ground of the guitar, often at the volume potentiometer.

Fixing the ground cable

To secure the ground cable, I drill a small hole in the cavity of the guitar, through which I pass the cable. Once in place, I make sure that it is securely connected to ground and that it will not dislodge with the slightest movement.

Conclusion: a guitar without interference

When everything is in place and the guitar is properly isolated, you get an instrument where electromagnetic interference is neutralized. This means that when you touch the strings, your body does not add unwanted noise to the signal. It is precision work, but the result is worth it: a guitar with a pure signal and no interference.

In the next video I will show you the steps to wire this guitar, using this isolation system to ensure optimal performance. Stay tuned!
